FX Auto Stacking Flood Shutter
Description:

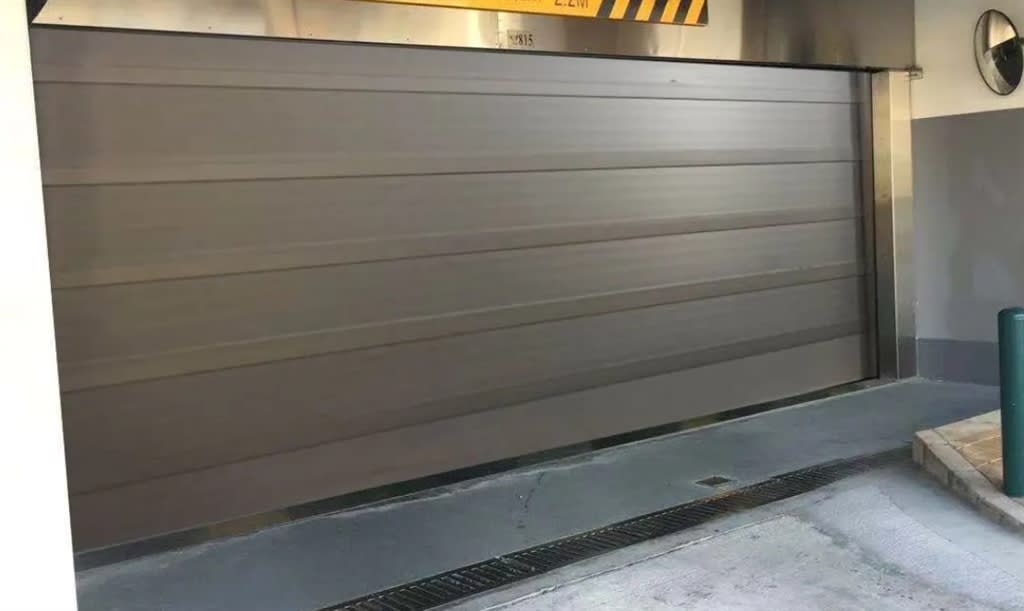

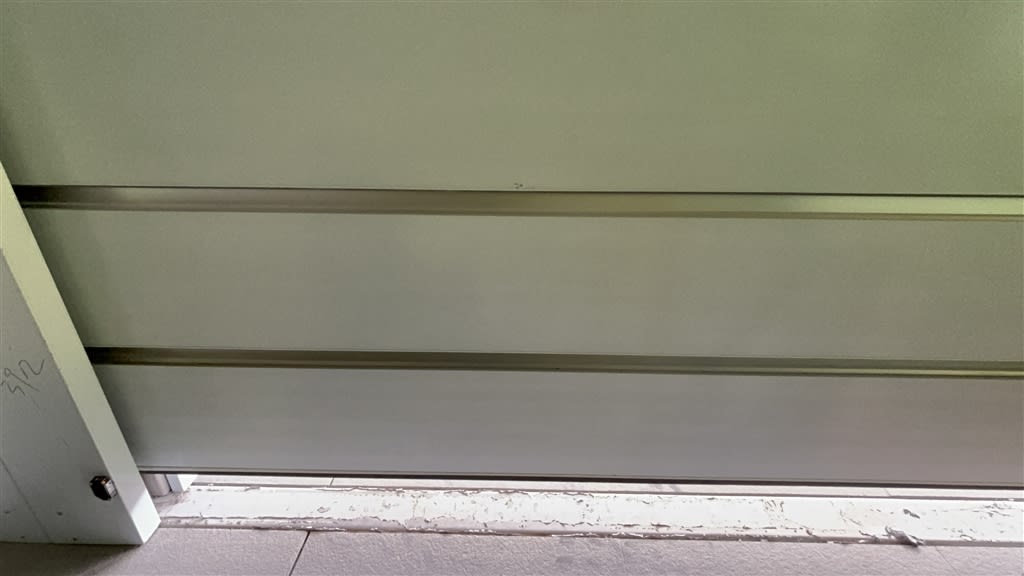

FX Auto Stacking Flood Shutter is a rolling shutter designed for large openings, supporting up to 3m height and 8m width. It features integrally formed aluminum alloy panels (340 mm per panel) engineered
to withstand high water pressure, guided by 250 mm-wide iron side tracks.

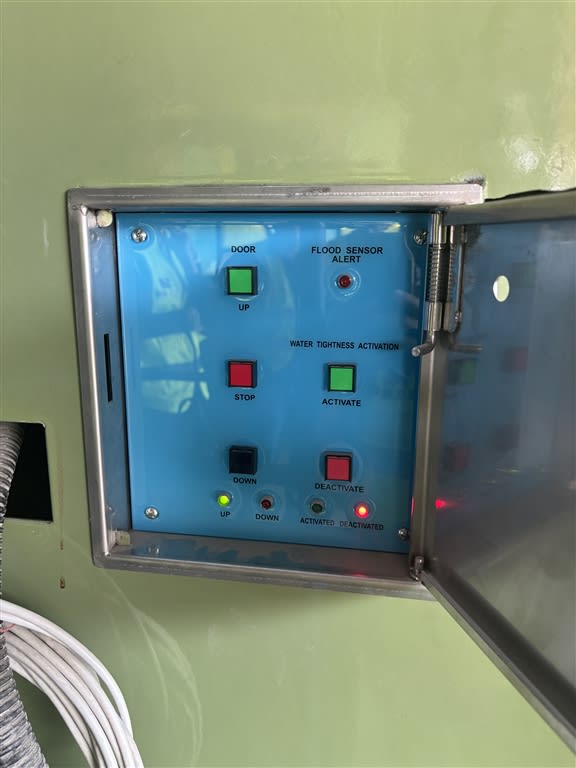

The system incorporates patented top and side pressing mechanisms to ensure effective sealing, a calculated sliding center column optimized for water pressure resistance, and a water-level sensing function that automatically activates the pressing mechanism when preset flood levels are detected—delivering fast, reliable flood protection with efficient, user-friendly operation.
Coverage:
Opening Width: up to 8 meter
Height: up to 3 meters
Specification:
Structure & Frame: All iron components are treated with ≥50 μm powder coating for enhanced corrosion resistance and extended service life, while key base elements are stainless steel.
Door Panel Material: Aluminum Alloy
Compression Method: Electric push-rod actuator
Activation Method: Electric
Certifications: Stainless steel material complies with CNS 8499 (G3164)
standards.
Ease of Use:
Ease of Deployment:
Water Tightness:
Requires Permanent Fixings:
Yes
Yes
